MUX (BCT)

Ternary three-way Multiplexer in BCT. Allows the value of a trit to select one of three inputs.

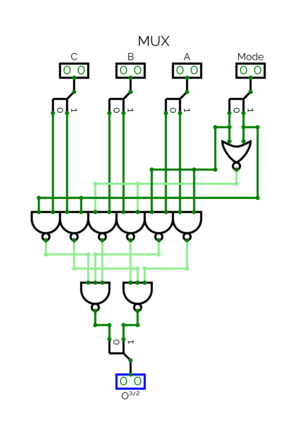

BCT Ternary Multiplexer

Variable Delay

Due to the selector BCT decoder stage (NOR Gate) the MUX delay is 2 if the selection (Mode) input arrives first. Else the delay is 3 if the input arrives first.
